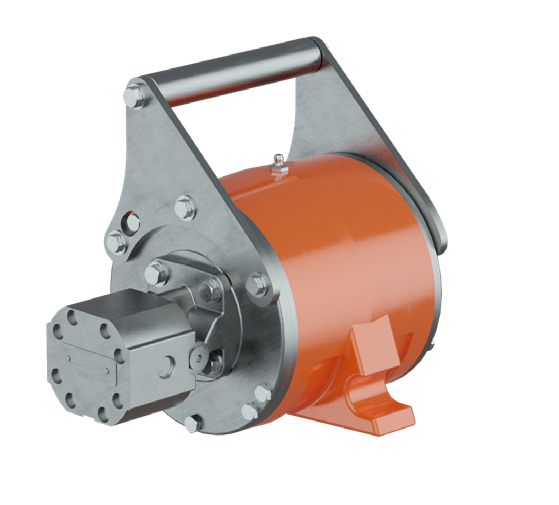

Martin CC2.8-A Brute Air Motor Driven Vibrator

Brand Martin
Series CC
Model CC2.8-A
Item # CC28-A-GC
Quantity

Overview

With its cradle lug bracket, the CC Series is suited for applications requiring portability and position changes. Also available for hydraulic power. Specifications vary depending on eccentric weight Setting chosen (range is shown).

Specifications

Max Force Output 5145 lbs
Min Force Output 910 lbs
Unbalance 2.0 - 8.0 in-lbs
VPM @ 40 PSI 3600 - 4000
CFM @ 40 PSI 37 - 39
Force @ 40 PSI 910 - 3020 lbs
VPM @ 60 PSI 4300 - 4700
CFM @ 60 PSI 49 - 53
Force @ 60 PSI 1255 - 4320 lbs
VPM @ 80 PSI 4700 - 5300
CFM @ 80 PSI 59 - 66 PSI
Force @ 80 PSI 1600 - 5145 lbs
Mount Type Cradle Lug Portable
Weight 45 lbs

Dimensions

Dim A: 9.00

Dim B: 7.12

Dim C: 9.09

Dim E: 3.00

Dim J: 1/2 - 14

Dim F: 4.20

Downloads

  • Martin Vibration Solutions Brochure

  • Brute Pneumatic Vibrator Tech Data

  • Brute Vibrators Operator Manual

  • Brute Hydraulic Vibrator Tech Data
